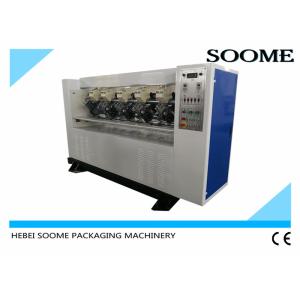

Electrical Thin Blade Slitter Scorer Machine Correction Type 80 M/Min
I. General introduction
Thin blade slitter scorer has two main types: one is online slitter scorer can match with corrugated production line; another is offline slitter scorer can work separately for corrugated sheets slitting creasing before making cartons.
And for the blades and scorers quantity, can make as customer line working width. Blades and scorers also has manual adjustment and electrical adjustment. This model has electrical blades movement.
Customer can offer the requirements, as factory, we do the suitable machine for you.
II. Function and features
Suitable to the corrugated cardboard slitting and scoring in the production line.
1. Slitting part: adopt high quality tungsten steel alloy thin blade, sharp and long service life, slice more tidy, non-pressing and non-burr.
2. Grinding part: adopt automatic and manual two kinds pneumatic grinding type. It can be grinding when working, improved the work efficiency.
3. Scoring part: adopt 5 points scoring, scoring distance adjusted synchronously, blazonry and easy to bend the carton sheet.
4. Adopt China famous brand or imported electric elements, reliable performance.
5. Electric left-right rectification 200mm function to cooperate the position of paper sheet.
6. The space between slitting blades is electrically adjusted, automatic locking, can reach min. slitting width 130mm.
7. Double smooth shaft guide way, stable operation; inlay O-ring seal, clean and dust-proof.
8. Self-researched nut rotation technique with the automatic locking function, simple and useful.
III. Technical parameters
| Type | SMBD-DDHY-1800 | SMBD-DDHY-2000 | SMBD-DDHY-2200 | SMBD-DDHY-2500 |
| Effective width | 1600mm | 1800mm | 2000mm | 2300mm |
| Speed | 80m/min | 80m/min | 80m/min | 80m/min |
| Blade configuration | 4-6 blades | 4-6 blades | 4-6 blades | 4-8 blades |
| Press line wheel | 6-10 lines | 6-10 lines | 6-10 lines | 6-14 lines |
| Min. slitting width | 130mm | 130mm | 130mm | 130mm |
| Min. indentation width | 30mm | 30mm | 30mm | 30mm |
| Correction scope | 200mm | 200mm | 200mm | 200mm |
| Total power | 7kw | 7kw | 7.5kw | 7.5kw |
| Size of machine | 2450*940*1820 | 2650*940*1820 | 2850*940*1820 | 3150*940*1820 |
IV. FAQ
1. Where is your factory located?
A: Our factory is in Dongguang county, Cangzhou city, Hebei, China.
2. Will you attend Corrugated Packaging Exhibition?
A: Yes, we attend the Sinco Corrugated Expro every year. One year in Shanghai and next year in Dongguan, Guangdong province.
3. Can customer visit SOOME factory?
A: Yes, welcome to visit our factory anytime. Can contact us before your coming.
